Device for the automatic control and protection of electric pumps intended for the distribution of pressurised fresh water, equipped with flow rate and pressure sensors managed by an electronic card, it replaces the traditional expansion tank system with the following advantages
Reduction in the number of pump starts with consequent reduction in wear and tear - Reduction in overall dimensions - Pump protection against dry running - Maintenance of pressure value during water supply - Display of pump status (Power on,Pump on, Failure) - Automatic reset (when voltage returns) - High performance reduced absorption - Calibrated and tested system requires no adjustment during installation
APPLICATIONS:
Pressurised fresh water distribution on boats. Kitchens, showers, sinks, boilers, etc.
CONSTRUCTION:
The standard configuration of the Control Press system is realised with the ECOINOX, ECOJET, JET series el/pumps and includes:
Robust techno-polymer pressure switch body - Stainless steel base on rubber vibration dampers (on request) - Non-return valve
MOTORS:
Insulation: "F" class
Protections IP54 A.C. - IP22 D.C. Protections: IP54 A.C. - IP22 D.C
Voltage 24V; 1a230V; 3a230/400V V50/60Hz
Pump flow rate: 50l/min - Re-open pressure 2.2bar - Max pressure 3.5

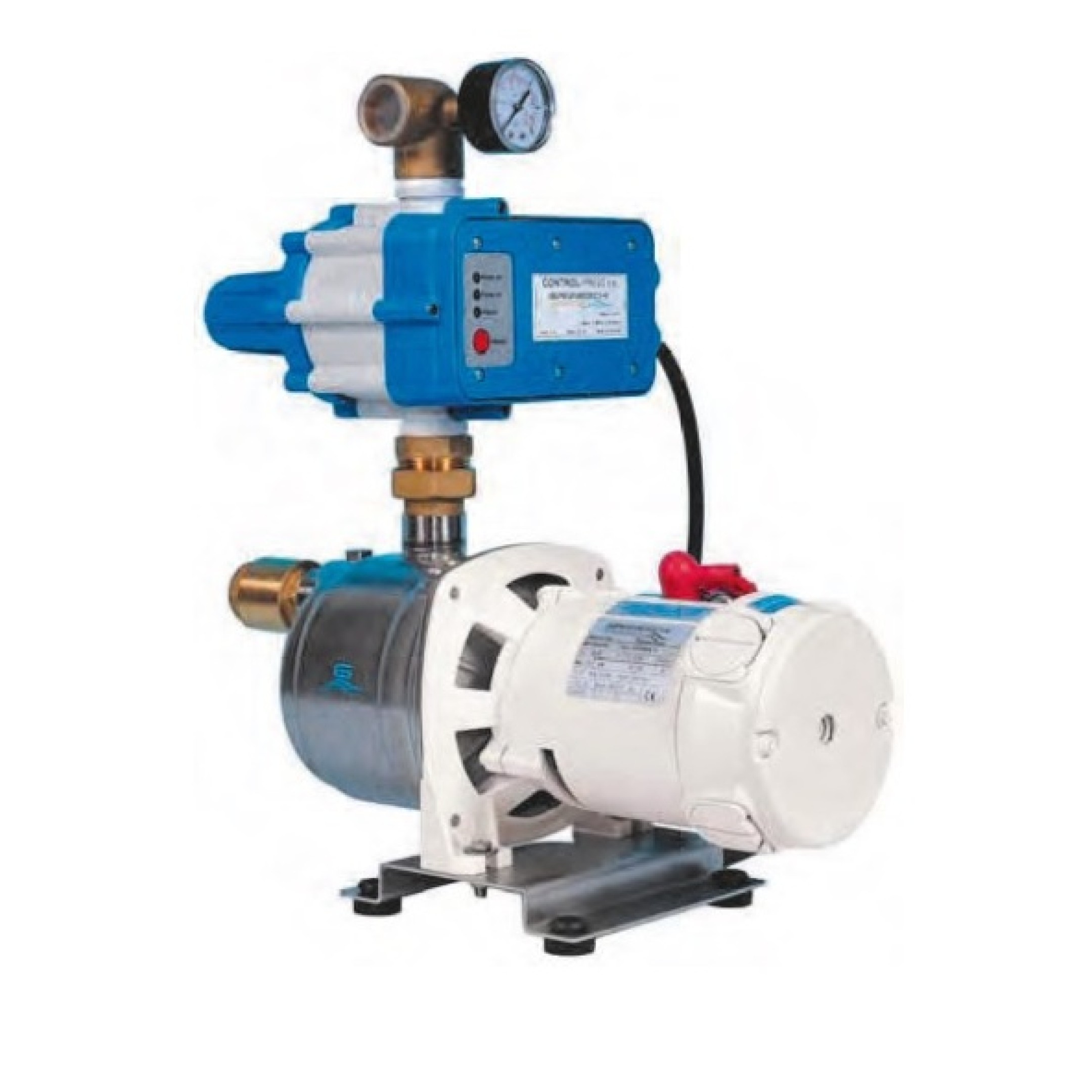

Pump without bracket indicative photo
