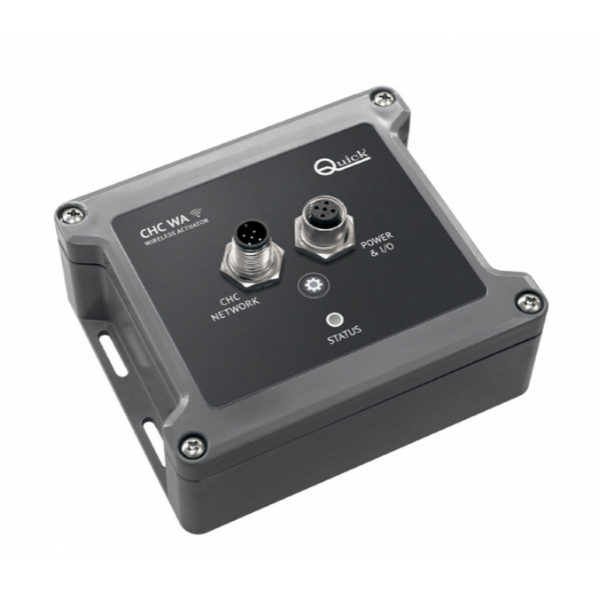

The CHC WA unit is a device which, when paired with a wireless controller from the CHC W system, enables the operation of an anchor windlass and the measurement of the length of chain let out – Operates on the 2.4 GHz band - CAN bus communication interface for data transfer - 12/24 Vdc power supply - Operates across a wide range of ambient temperatures - Automatic free-fall anchor winch control - Multi-channel bidirectional transmission - Compact design - Option to use two wireless controllers -
IP67 protection rating - Up/down current output: 4A max - Input voltage: 12/24V - Current draw: 65 mA - Features: Communication interface: CAN bus with transceiver - External connections: 5-pin male M12 (code A) CAN bus, 5-pin female M12 (code C) power - Carrier frequency: 2.4 GHz ISM band - Radio channels: 6 - Modulation: FSK - Number of storable commands: 2 - Operating temperature: –20° to +70° - Protection rating: IP67
