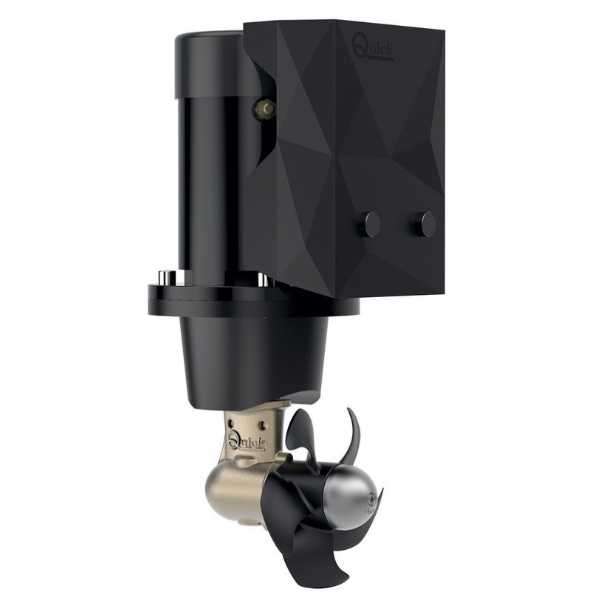

Original Quick 12V Bow Thruster for Boats from 7 to 9 metres. BTQ14040
Gearbox: Designed so as not to affect the propeller’s performance in either direction – the bevel gears are case-hardened and ground to ensure maximum efficiency - Maintenance-free, as the special high-strength components guarantee a perfect seal for the lubricating oil throughout the propeller’s lifetime - The anodised zinc protection is easily replaceable - The bronze propeller shaft features a hydrodynamic profile that minimises turbulence
The Propeller: 4-bladed – ensures optimum thrust performance and reduced power consumption – is made from composite material, durable in all conditions, and secured with self-locking stainless steel nuts
The Casing: Protects the gearboxes – made from robust, corrosion-resistant composite material – the electrical connections are fitted with quick-connect terminals
The Flexible Coupling: Optimises alignment between the motor and gearbox; it is an exclusive Quick design – it acts as a shock absorber, protecting the system from the pulsating operation of the bow thruster, with results significantly above average
The Motor: State-of-the-art materials have been selected to consistently guarantee the required efficiency and maximum performance, given the demanding conditions required by the application – protection against motor overheating is ensured by a microprocessor
Support Flange: Made entirely of anodised aluminium with a hard oxide coating
Protection and Controls: No electronic components are fitted to the motor – all protective functions are managed by a microprocessor installed on the control panels (joystick) – thrust reversal with programmable delay – timed automatic shut-off

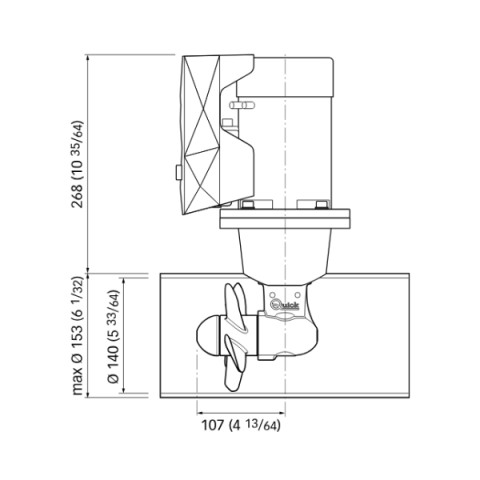

Specifications: Single 5-bladed propeller – tunnel diameter 140 mm - 12 V power supply - Motor power 2.2 kW - Thrust 40 kgf - Weight 12.3 kg
Optional Accessories: Tunnel (Item No. SAPVTL140075) - Joystick (Item No. TCD1042) - Control extension cable (Item No. TCDEX06)
