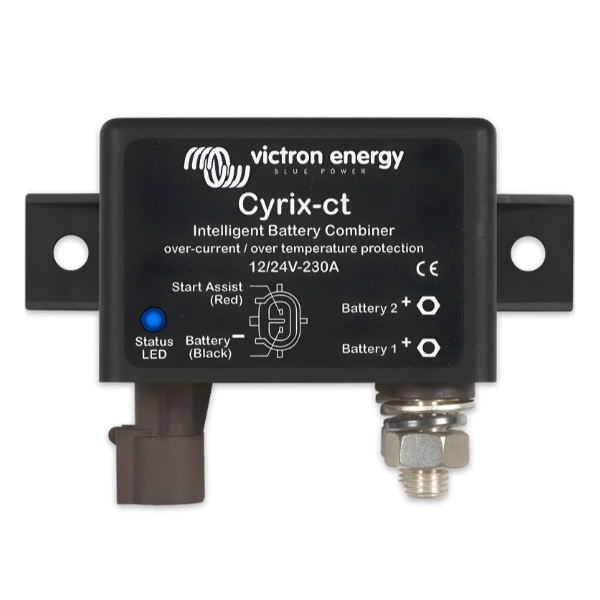

VICTRON CYRIX-CT 12/24V 230AH BATTERY PARALLEL CONNECTOR

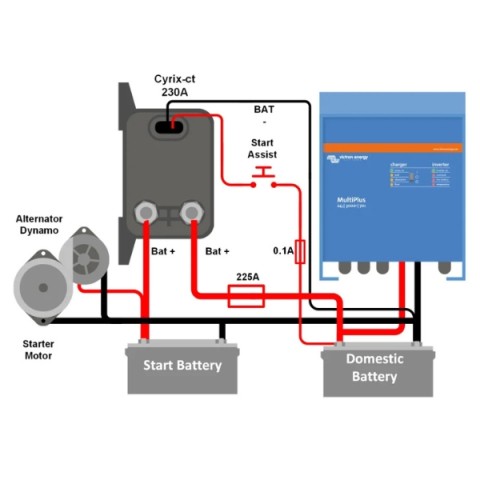

The Cyrix battery combiner is a microprocessor-controlled heavy-duty relay that automatically connects batteries in parallel when one of them reaches the preset voltage (indicating that the battery is charging) and disconnects when the voltage drops below the maintenance level (indicating that one or more batteries are running low). Cyrix battery combiners are an excellent replacement for diode isolators. The main feature is that there is no voltage drop. Therefore, the output voltage of alternators or battery chargers does not need to be increased. - Features: Direct current 230ah - Peak load: 500ah - Switch-on voltage: 13-13.8V (12V system) and 26-27.6V (24V system) with adjustment of the trend  - Separation voltage: 11-12.8V (12V system) and 22-25.7V (24V system) with adjustment of the trend - Current consumption (relay open): 4 mA - Current consumption (relay closed): 320 mA/12 V or 180 mA/24 V - Cable connection bolt: 8 mm - Connection socket for Start Assist control cable - Protection class: IP54 - Dimensions (HxWxD): 65 x 100 x 50 mm
